Steps: 1
To configure the WAN port of the device, access the Device Console Page to view its status and perform the necessary settings.
(Ensure your system—PC or laptop—is connected to the device using a LAN cable.)
Steps to Access the Console Page:
1.Enter the Device IP Address
Open a web browser and enter the IP address of the device (The IP Gateway address should follow the format: 192.168.33.33). This will open a sign-in portal to access the device status.
The credentials are:
If you cannot obtain the device's IP address through DHCP, you can statically set the IP address of the device:
IP Address: 192.168.33.XX (anything except 33.33)
Subnet Mask: 255.255.255.0
Gateway: 192.168.33.33
Username: ray or root
Password: MAC address of the device without Colon. Make sure it will small latter always
2.Log in to the Console Page:
Once the sign-in portal appears, enter the required credentials.
3.Console page:

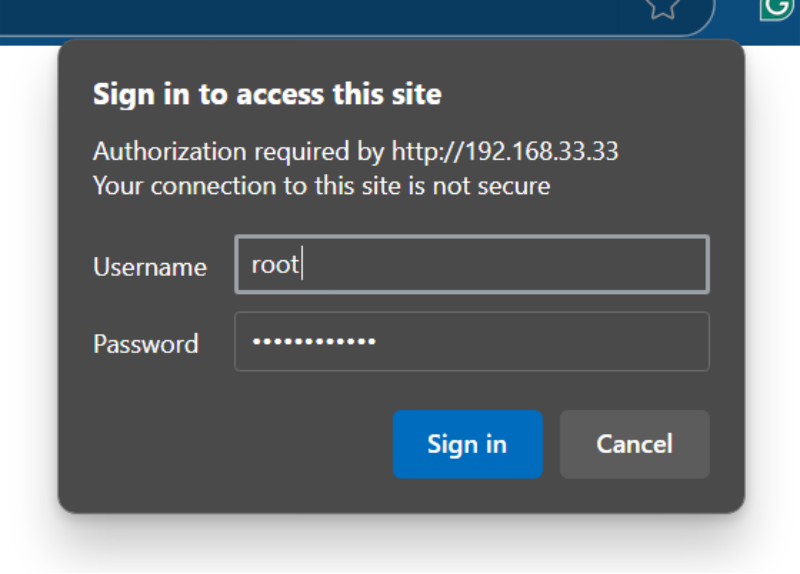

After logging in, you can view the device status and configure it according to your Requirements. Refer to the image below for an example of the sign-in portal.

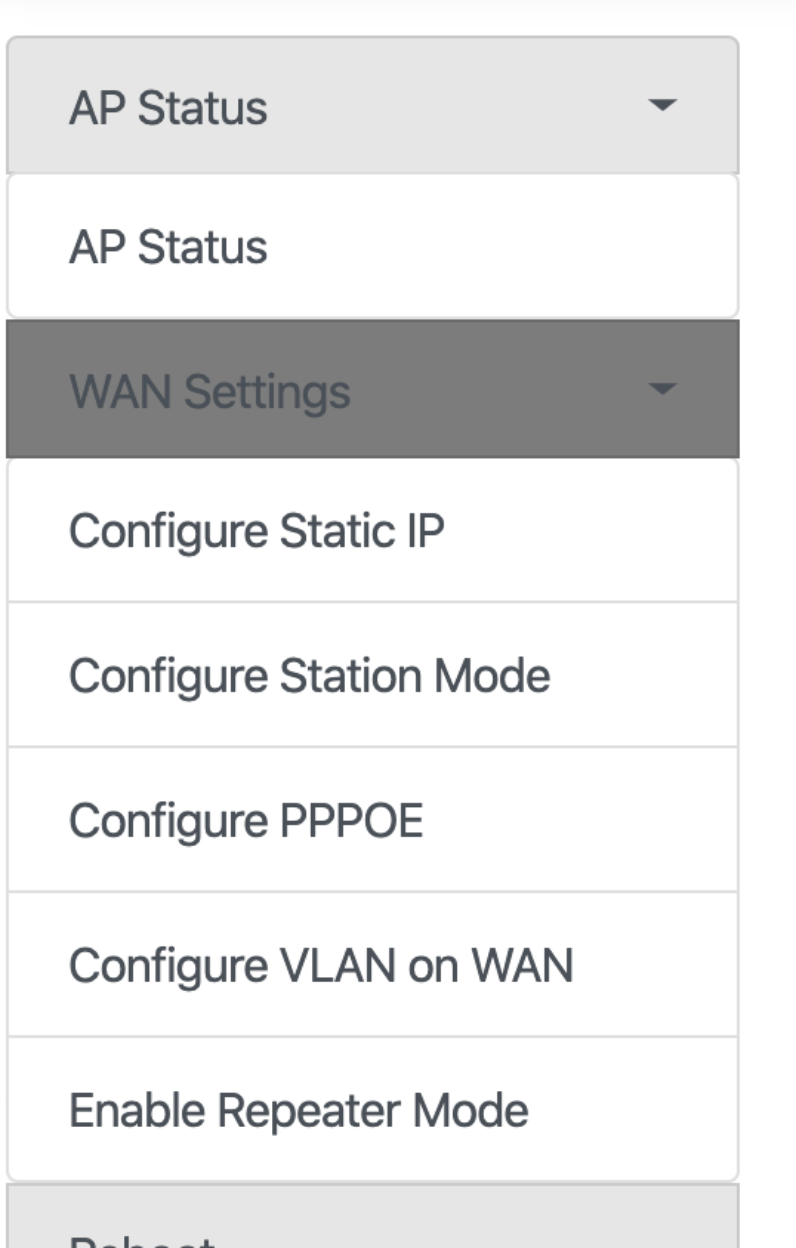

4. Click on Configure WAN Settings.

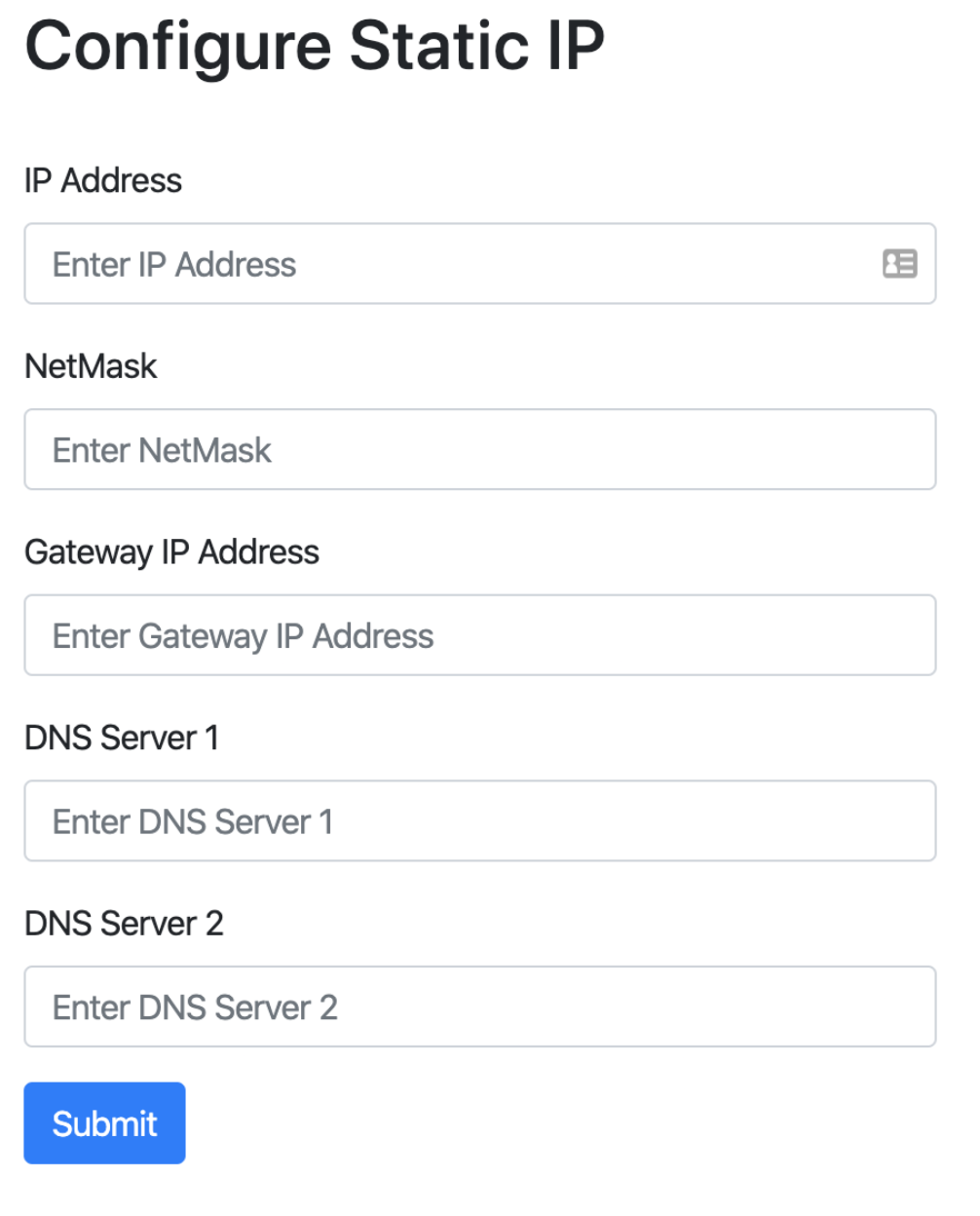

For Static IP
You can mention the details below and press Submit.
Press Submit.
Steps: 2
But in your setup, if the WAN type is Static IP on WAN then you can follow the below steps.
Steps to Access the Console Page

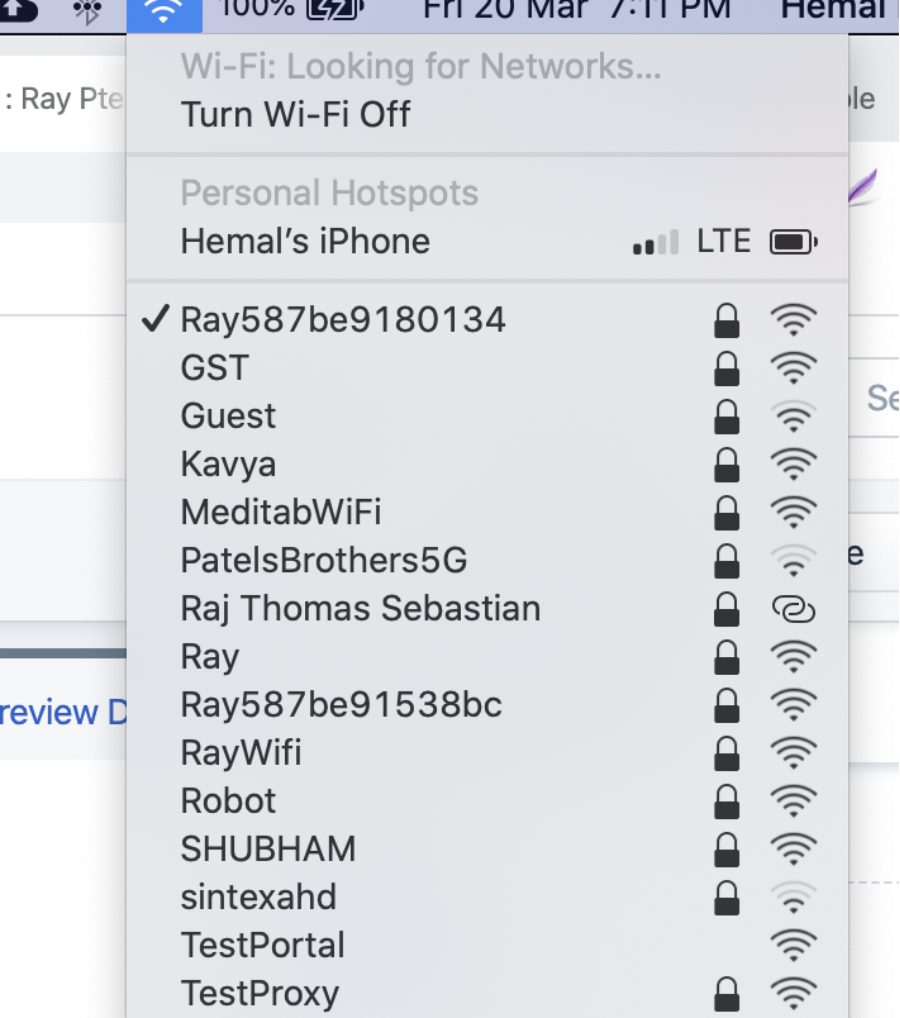

1. Access Point - In case your Ray AP is not receiving the IP via DHCP, it should be broadcasting the SSID WiFiXXXXXXXXXXXX where XXXXXXXXXXXX is your MAC Address of the AP and also the password of the SSID. Please login in the WIFIXXXXXXXXXXXX SSID.
2. Go to your browser and type http://192.168.33.33/
Note: Use the below provided credentials for the GUI access.
Username: root
Password: MAC-Address of the device
3. Click on Configure WAN Settings.
For Static IP
You can mention the details below and press Submit.
Press Submit.
